Sale!

Scratch and Dent Rolling Strike for K58/77/W19

From: $45.00 $35.00

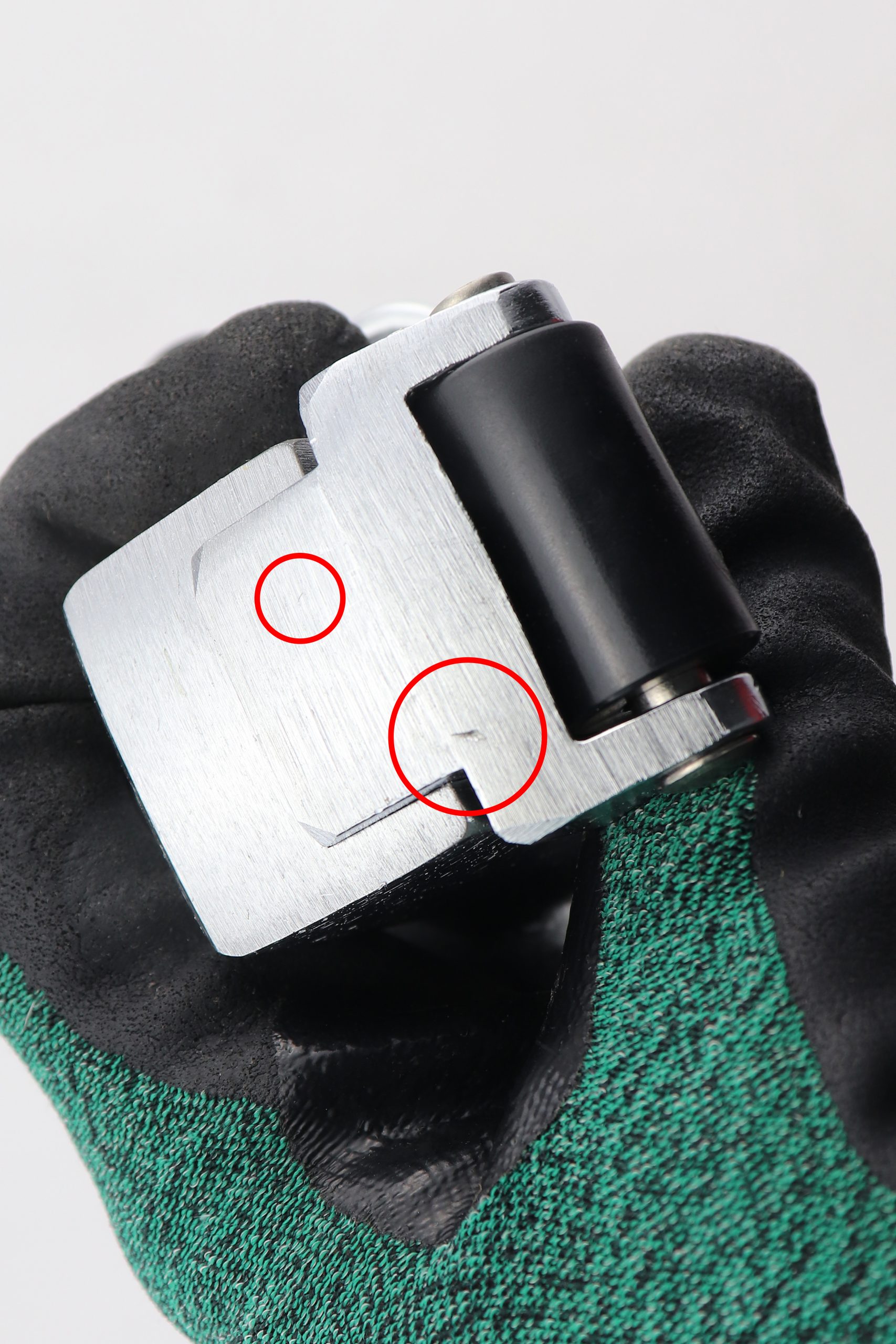

*Photo may not be representative of actual blemishes. All parts are fully functional and in acceptable condition. If you have any questions or concerns, please feel free to contact us at webparts@uscooler.com or at 866-261-2797.

Description

WICP - Scratch and Dent (Blurb)

59 Rolling Door Strike

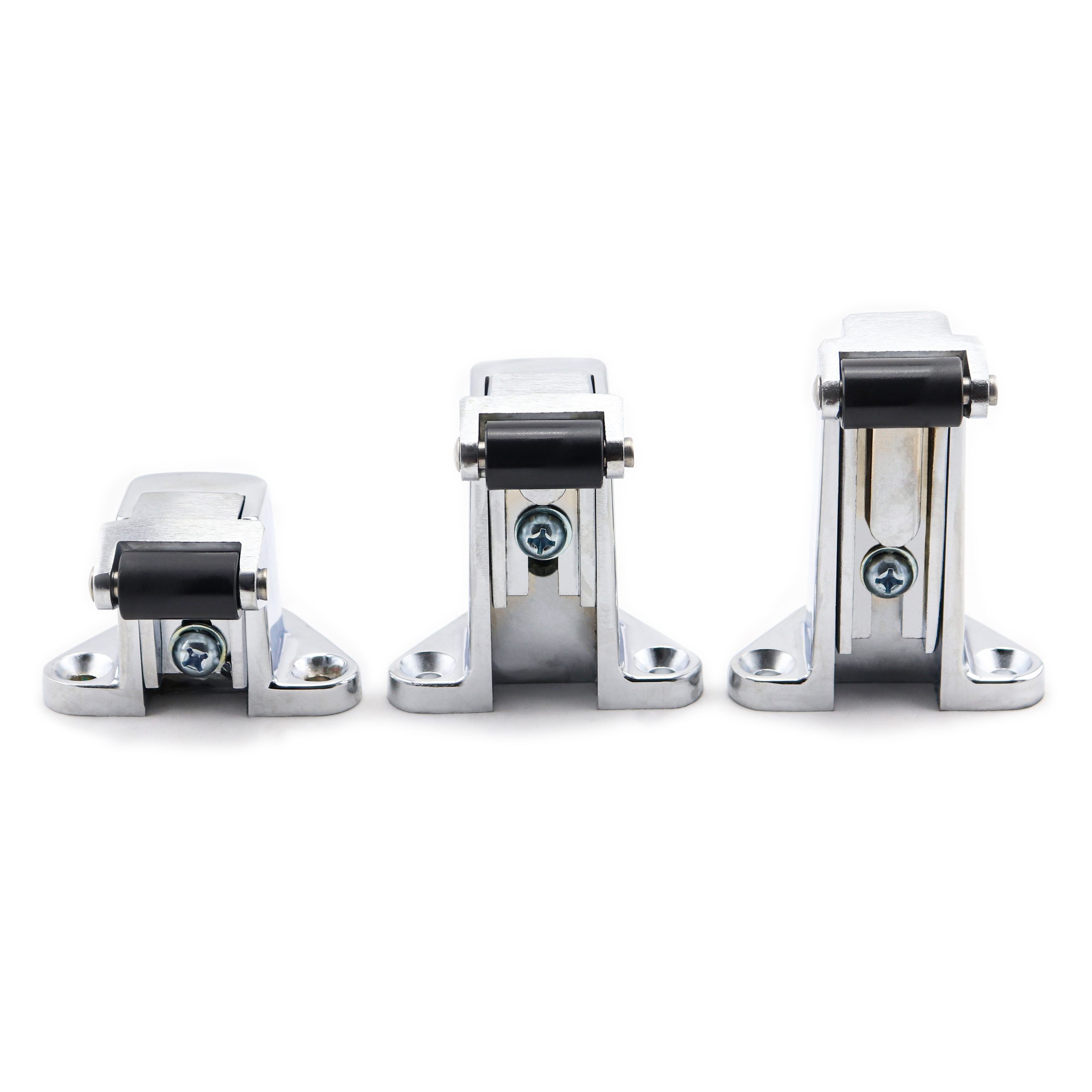

This is a rolling strike for Kason 58 handles. This comes in three different offsets (get the offset by measuring the distance that the door sits above the frame). Click here to purchase the Kason 58 handles for this strike. Can also be used with a W19 Handle.

Specifications:
Material : High pressure die-cast zinc; stainless back plate.
Finish : Polished chrome. Flush strike available in brushed chrome and polished chrome.
Mounting Holes : Drilled and countersunk for 1/4″ (6.0mm) screws.
Mold Number: 58-41-54 for flush to 1/4″
                           58-44-54 for 3/4″ to 1 1/2″ and 1 3/4″ to 2 1/2″

MPN Variations: 10059005001, 10059006001, 10059005002, 10059005003
Certifications: NSF
SKU: 398801, 392183, 272738, 272572, 498833, 498834, 498835, 498836

W19 Rolling Door Strike

This is a rolling strike for Component Hardware Keil W19 handles. This comes in flush 1/4″ offset (get the offset by measuring the distance that the door sits above the frame). Special order is available for 3/4″ to 1 5/8″ offset and 1 5/8″ to 2 1/2″ offset. Click here to purchase the W19 Handle for this strike. Can also be used with the Kason 58 handles.

Specifications:
Material : Reinforced die cast Zamak; inner working parts and back plate are stainless steel.
Finish : Satin Chrome.
Mounting Holes : Drilled and countersunk for 1/4″ (6.0mm) screws. (screws are not included)
MPN Variations: W19-Y202
Certifications: NSF
SKU: 483352, 543626

How to determine offset

Warning: California’s Prop 65


Additional information

Weight 2 lbs
Dimensions 4 × 4 × 4 in
Rolling Strike

W19 Flush to 3/8" Brushed, W19 Flush to 3/8" Polished, K59 Flush to 1/4" Polished, K59 Flush to 1/4" Brushed, K59 – 3/4" to 1 1/2" Polished, K59 – 1 3/4" to 2 1/2" Polished
