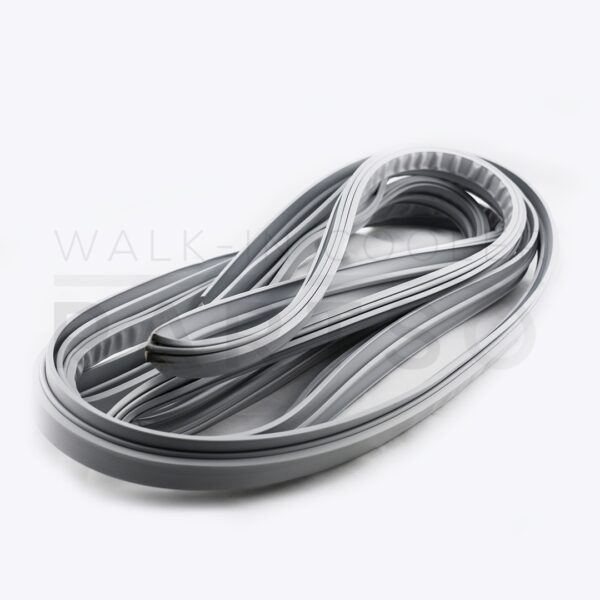

DOOR GASKET MAGNETIC – 34X76 (Standard Door Size) – Single Dart

$38.00

3-sided single dart push-in magnetic gasket (door seal).

Outside Edge Measurements: 35-1/4″ X 76-1/4″

Dart to Dart Measurements: 34-3/4″ X 76″

Height can be cut down to size, cutting width is discouraged as it may cause loss of effectiveness and air infiltration. If you must cut the width, seal up the gap with NSF approved silicone caulk. Please ensure that your cooler/freezer uses this style of gasket. Used with some models of American Panel, International Cold Storage, Kolpak, Kysor Panel, Leer, Master-Bilt, Nor-Lake, Thermo-Kool, U.S. Cooler and Vollrath walk-ins. There are many types of gasket and this will not work for all walk-in models. Installation instructions and screws to secure gasket are included.

Door Gasket Installation Instructions – PDF

Certifications: NSF

Ordering Tips:
Examine the cross section of the gasket on your walk-in to ensure you are buying the correct model. Measure your gasket and verify the dimensions are correct.

SKU: 272729 Category: Tags: , , ,

Additional information

Weight 6 lbs
Dimensions 36 x 4 x 4 in
