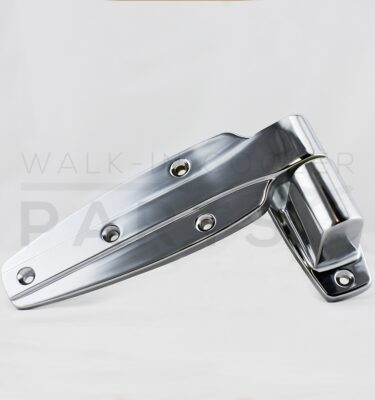

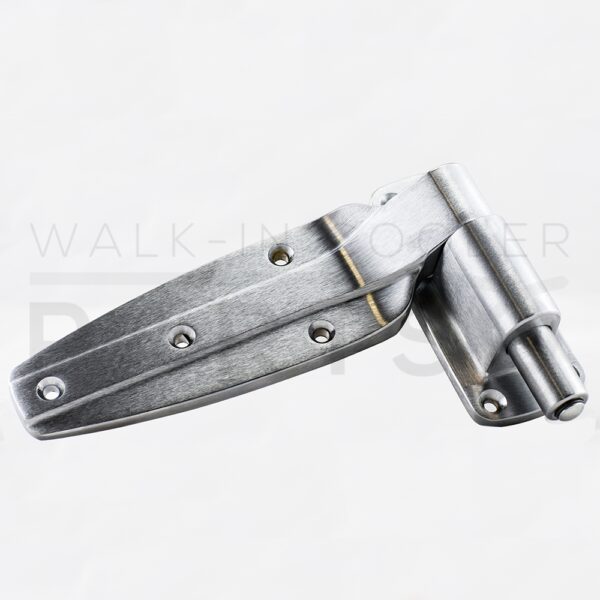

Kason 1248 Spring Loaded Hinge – Flush

$99.00

Kason 1248 Cam Rise Hinge - Flush

SKU: 493213 Categories: ,

Description

Spring Assist Door Hinge – Kason 1248

Spring mechanism adds extra closing force to overcome air resistance on heavy walk-in doors.

  • Special high-lift cam system outperforms similar spring hinges.
  • Flush mount model for doors that are even with door frame.
  • Cam-rise action reduces gasket wear, even with irregular floors.
  • Built-in dwell holds door open when beyond 135°. Will self-close if less than 135.
  • Simple manual operation reverses hinges for use on right- or left opening door.

SPECIFICATIONS
Material: High pressure die-cast zinc with self-lubricating nylon cam
Finish: Brushed Chrome, special order available for polished chrome and powder coat.
Offset: Flush, special order available for other offsets.
Mounting: Drilled and countersunk for 1/4″ (6.0mm) flat head screws. (screws are not included)
Load Rating: See Hinge Selector Chart, Group D.
Certifications: NSF
greenguard certification

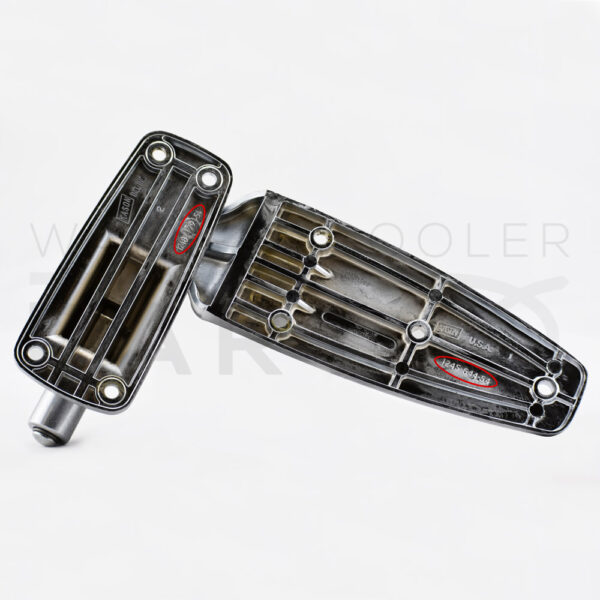

Mold Numbers: Bracket –  1248-179-54, Flange – 1245-644-54
MPN Variations: 1248-28, 1248-000028, 11248000028
SKU: 493213

1248 Hinge Installation Instructions PDF

How to determine offset

Hinge Reversal Instructions

https://walkincoolerparts.com/wp-content/uploads/2016/08/reversehinge1.jpg 1. Lift strap from flange and remove pin assembly.

https://walkincoolerparts.com/wp-content/uploads/2016/08/reversehinge2.jpg 2. Pop out cap. Turn strap 180 degrees, reinsert pin assembly.

https://walkincoolerparts.com/wp-content/uploads/2016/08/reversehinge3.jpg 3. Reposition strap into flange and replace cap.

Warning: California’s Prop 65



Additional information

Weight 3.25 lbs
Dimensions 10 × 7 × 2.5 in
