KASON 1094 Standard Mount Door Closer with Flush Hook



Hydraulic Door Closer with Hook – Kason 1094 SureClose™

Powerful gas-loaded hydraulic cylinder guarantees controlled closure.

  • Exposed mounting model with visible mounting screws.
  • Sure Closure – Self correction and extra-wide hook ensures roller pick-up and overcomes alignment problems.
  • Long Lasting – Life-cycle tested to operate reliably even after a half-million closures. Patented solid steel enclosed housing and bend-resistant hook assure long wear in heavy use.
  • Versatile – Easily replaces any conventional door closer.
  • Perfect complement for Kason walk-in hinges and latches where self-closing doors with controlled closure are needed.

MATERIAL: Heavy gauge steel.
FINISH: Polished chrome.
MOUNTING: Holes drilled for No. 10 (5.0 mm) screws (included).
Certifications: NSF
green guard
MPN Variations: 1094-3, 1094-000003, 11094000003
Package Includes: closer, hook, installation instructions, and screws
Walk-in Manufacturers: This door closer is used with some models by Kysor Panel, Snowman Coolers, Southeast Cooler and U.S. Cooler.
SKU: 272505
Literature: 1094 Installation Instructions

(This can be used to replace a CHG W-94 and other closers of comparable size. You will need to fill in the old holes with silicone caulk, position the 1094 to cover these holes and follow the installation instructions found above.)

How to determine offset

Warning: California’s Prop 65


Additional information

Weight 4 lbs
Dimensions 6 × 4 × 4 in

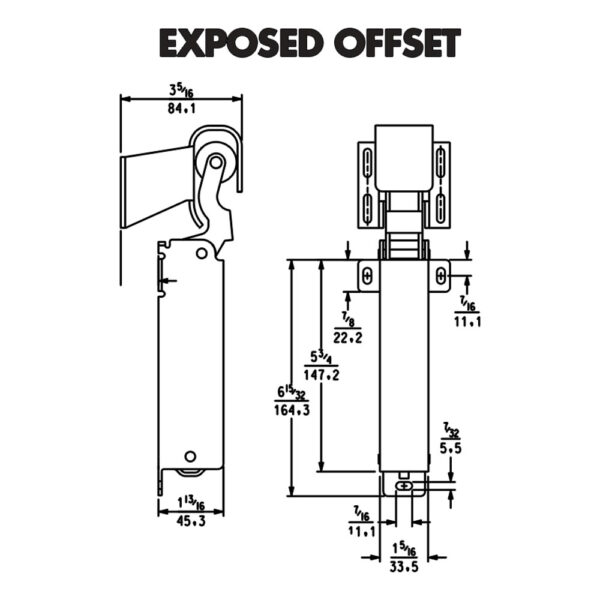

Door Closer Offset

Polished – 7/8" to 1 5/8" Offset, Polished – Flush to 3/4"
